A custom packaging dieline serves as the foundational blueprint for any printed paper box. It is a precise technical template that outlines all cut lines, fold lines, bleed areas, and the overall layout prior to mass production.
Brand purchasers and product managers often find dieline files difficult to interpret, which can lead to issues such as misaligned logos or incorrect box dimensions. Learning to correctly read a dieline helps you verify designs, avoid costly errors, and ensure the final paper packaging perfectly matches your creative vision.
As a custom paper box manufacturer, Crown Win Box Manufacturer draws on real-world client cases and factory expertise to explain simple, easy-to-understand techniques for interpreting dielines in this article.
Essential Dieline Markings You Must Know

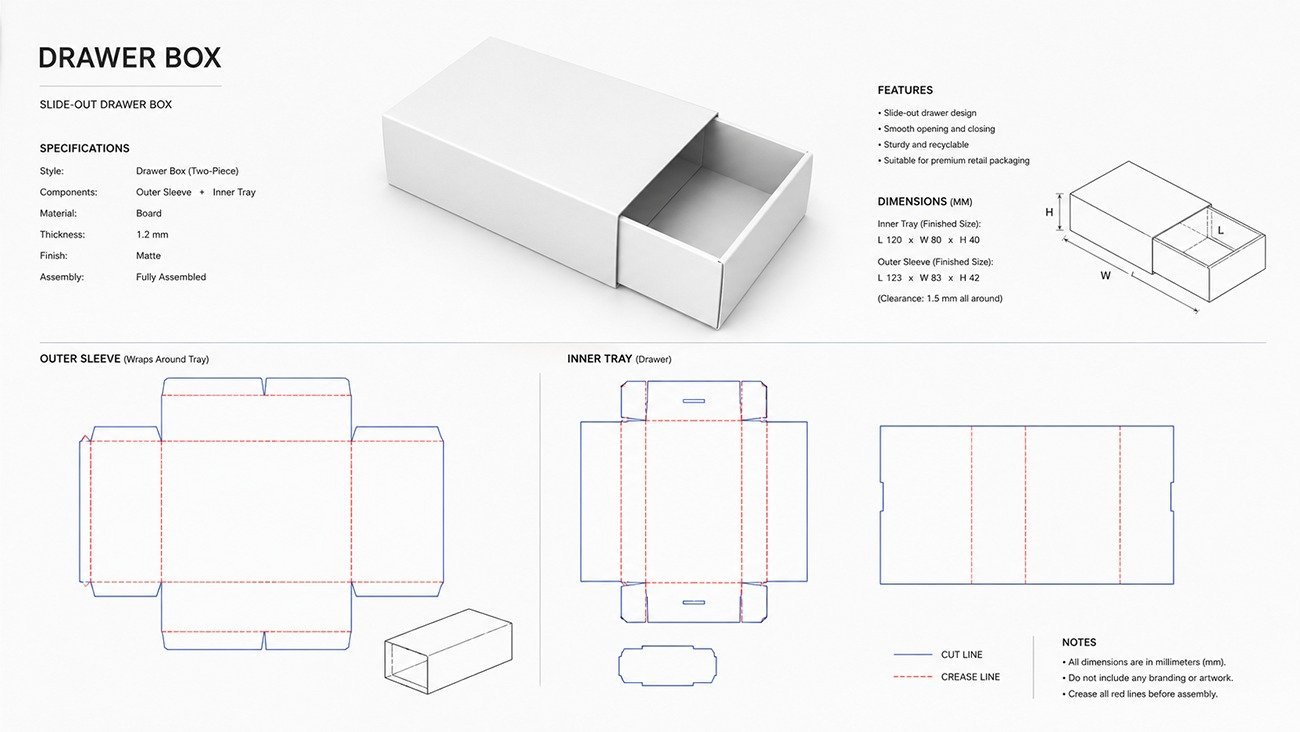

All standard packaging dielines utilize a unified system of line markings for production. Mastering the following three core markings allows you to quickly review the dieline for any custom paper box:
1. Cut Lines: Solid lines indicating where the paper will be fully cut through. These lines define the box's outer silhouette and its individual panels.
2. Score/Fold Lines: Dotted or dashed lines intended for folding rather than cutting. They create clean creases, ensuring the box folds flat and assembles neatly without the paper cracking.
3. Bleed Lines: Design areas extending beyond the cut lines. These prevent unsightly white edges from appearing after the cutting process.
In short: Cut lines determine the box shape, score lines establish the structure, and bleed lines perfect the printed appearance.
Real-World Case Study: Correcting Dieline Errors Before Production
A European skincare brand once submitted a self-created dieline for a custom cosmetic box. During the file review, our technical team identified two critical issues: missing bleed margins on the side panels and incorrectly positioned score lines (which would have caused uneven folding).
Many manufacturers might have proceeded directly with the client's file, resulting in defective packaging. However, Crown Win Box Manufacturer provided a complimentary professional review of the dieline, correcting the bleed areas and fold positions before sending the revised draft to the client for approval. Thanks to these modifications, the mass-produced boxes featured crisp creases and full-bleed printing, resulting in a premium look and feel. This proactive review saved the client over $3,000 in potential waste and prevented delivery delays.
Crown Win Box’s Capabilities in Custom Packaging Production
As a Chinese paper packaging and printing factory, we leverage our geographic advantages and supply chain to provide global clients with one-stop services—ranging from dieline verification and design optimization to precision box manufacturing. We are dedicated to resolving common issues related to dielines and printing:

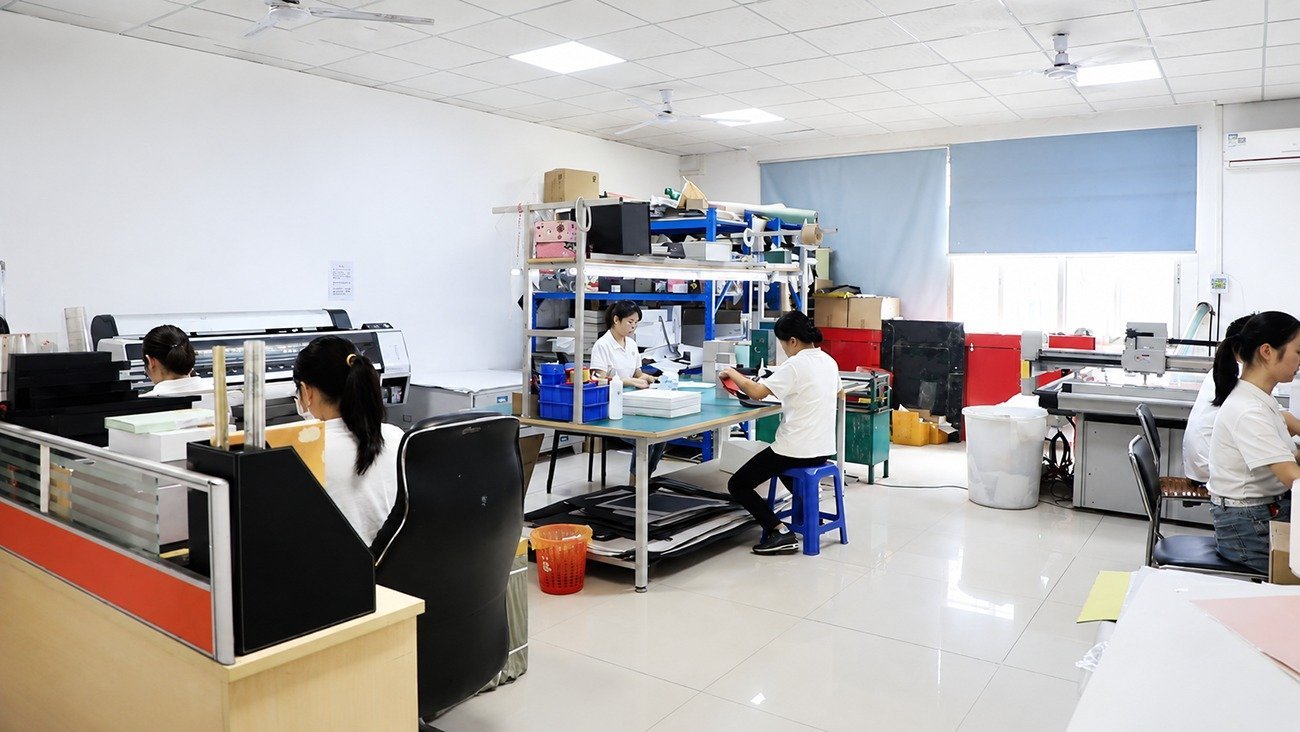

1. Free Professional Dieline Review: Our pre-production team inspects every client-submitted dieline to verify dimensional accuracy, folding logic, bleed settings, and print feasibility, offering free modification suggestions for all custom packaging orders.
2. Precision Die-Cutting Technology: We utilize high-precision die-cutting equipment and strictly adhere to approved dieline templates, ensuring consistent accuracy in die-cutting and folding across every batch of boxes.
3. Extensive Structural Design Experience: We handle a wide range of box structures—including rigid boxes, folding cartons, gift boxes, and shipping containers—and maintain established dieline standards for various packaging styles.
4. Customer-Centric Prototyping Process: Before mass production, we provide digital dieline proofs and physical samples for approval, proactively eliminating risks related to structure and printing.
Key Takeaways
Correctly interpreting custom packaging dielines is crucial for error-free box production. Before finalizing a design, it is essential to carefully check cut lines, crease lines (fold lines), and bleed areas. If you lack professional dieline experience or require file verification, the engineering team at Crown Win Box Manufacturer offers free dieline inspection and modification services, as well as tailored packaging solutions.
