Among all shoe packaging structures available on the global market, the flip up shoe box (also known as a hinged shoe box) is the most trusted solution for international sports brands, luxury footwear brands, and cross-border e-commerce sellers, thanks to its unrivaled versatility and multifunctional performance. As a professional paper shoe box manufacturer with 18 years of industry experience, Dongguan Crown Win Package Co., Ltd. breaks down the full technical details, flip style shoe box structure design, core advantages, real-world applications, and industry best practices of this classic packaging solution in this comprehensive guide.
What Is a Flip Up Shoe Box (Hinged Shoe Box)?
A flip up shoe box, also widely referred to as a hinged lid shoe box, is an integrated paper packaging structure defined by a box lid permanently connected to the box body via pre-cut hinge lines. It requires no separate lid components, adhesive hinges, or additional fasteners.
Unlike traditional telescopic two-piece (top and bottom) shoe boxes, this integrated design enables one-step opening and closing, tool-free assembly, and consistently stable structural performance across both retail display and e-commerce transportation scenarios.
This type of shoe box is typically constructed from kraft cardboard, E-flute or B-flute corrugated board, or recycled paper, with fully customizable dimensions, printing, and surface finishing to align with brand requirements. Its universal design makes it compatible with all footwear categories, from children’s shoes and casual sneakers to high-end leather boots and luxury high heels.

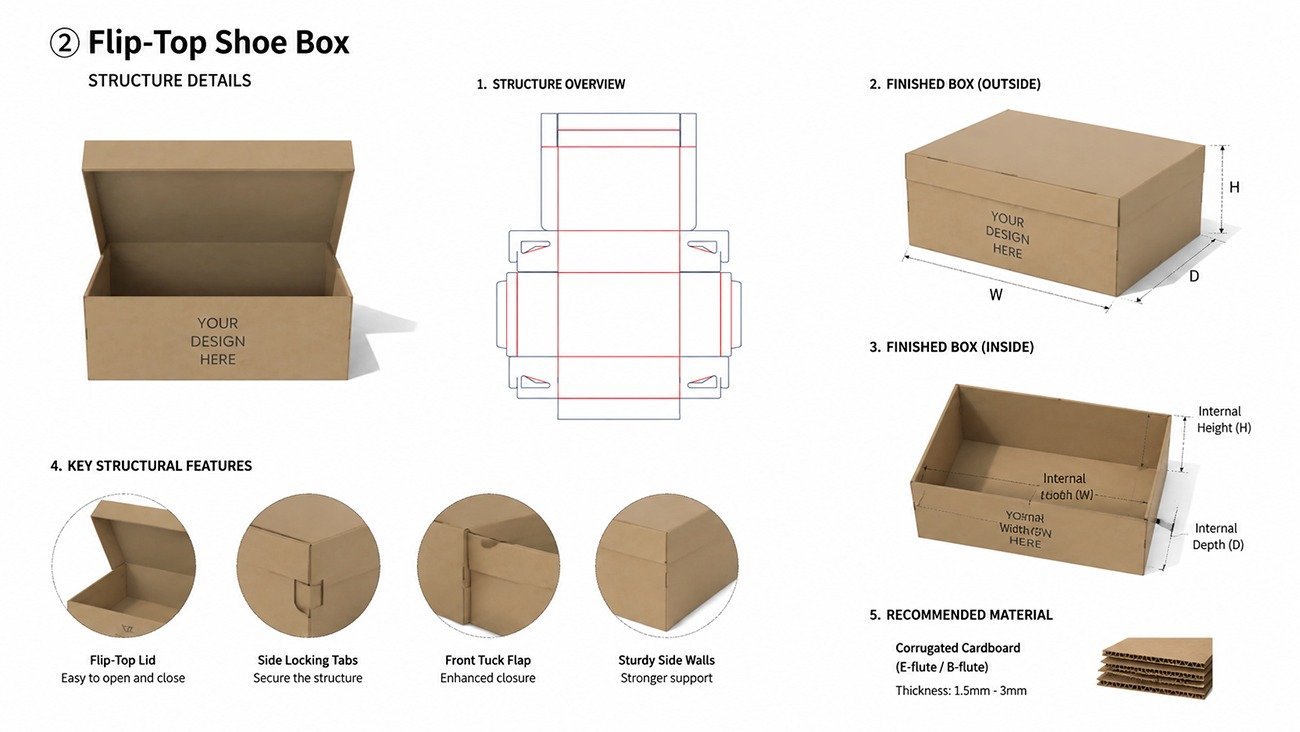

Complete Structural Breakdown of Flip Style Shoe Box (With Die Line/Knife Template Analysis)
To fully understand the performance of this packaging structure, we have analyzed its core components based on industry-standard die cutting lines (knife templates) and 3D structural design schematics, combined with 18 years of mass production experience from Crown Win.
1. Integrated Hinge Cover Plate
The top cover plate is seamlessly connected to the box back panel via precision indented hinge lines. This integrated design eliminates the risk of lid loss, ensures a consistent opening angle, and is far easier to assemble than two-piece telescopic boxes.
At Crown Win, our decades of manufacturing experience has proven that the hinge line is the core of long-term structural stability. We adopt a controllable scratch depth design for the hinge line, with a precision tolerance of ±0.1mm, ensuring it maintains full flexibility even after thousands of opening and closing cycles, with no risk of cracking or structural damage.
2. Box Body Panels
The box body is formed by four interconnected panels (front, back, left, and right), creating the main storage space for footwear. These panels are engineered with precise dimensional tolerances (±0.5mm in mass production) to ensure a snug fit for footwear, minimize movement during transportation, and reduce the risk of product damage.
All vertical edges are reinforced with folded baffles, significantly enhancing stacking strength and compression resistance for both warehouse storage and long-distance logistics.
3. Self-Locking Buckle System
The left and right side panels feature precision die-cut locking buckles, the core structural innovation of this flip style shoe box design. These buckles interlock securely with the front panel without the need for glue, tape, or any other fasteners, enabling tool-free assembly in seconds.
This self-locking system not only cuts assembly labor costs for brand owners and sellers, but also guarantees a secure closure, maintaining full structural integrity throughout the entire shipping and handling process.

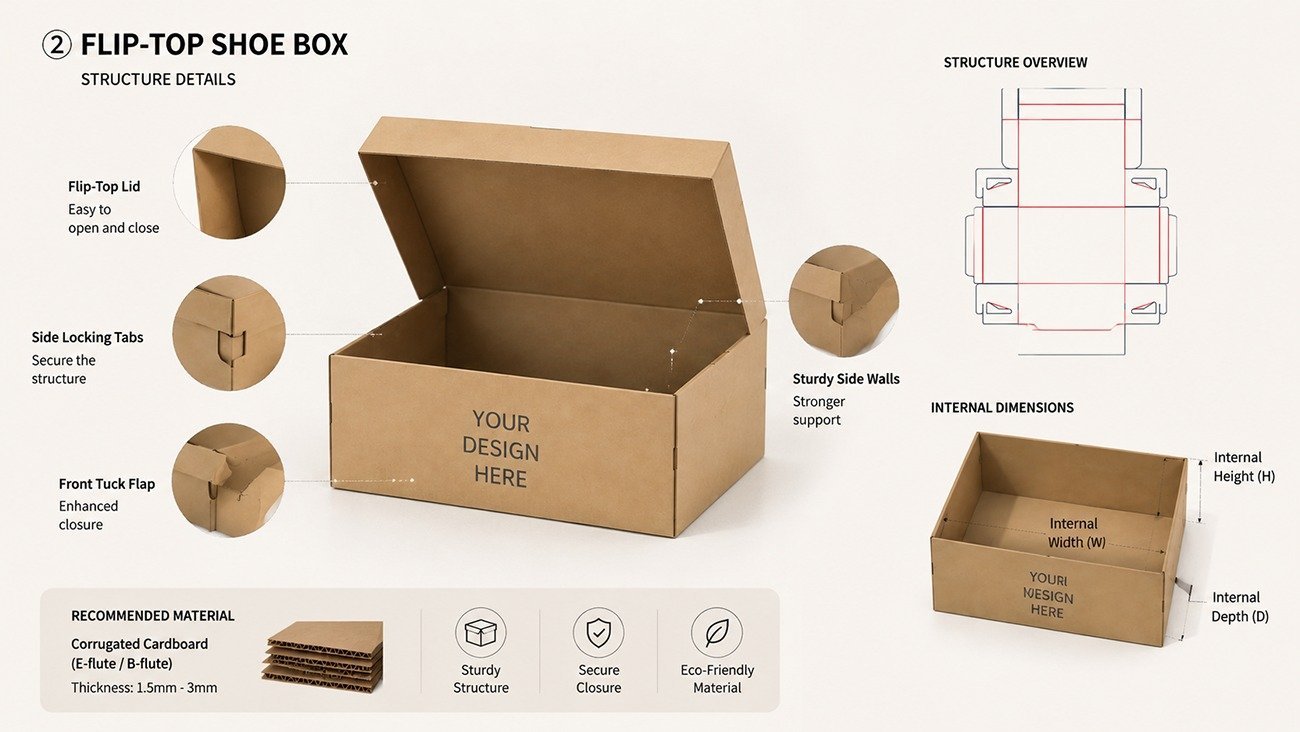

4. Precision Indentation & Die Cutting Lines
The die cutting template for flip style shoe boxes consists of two core lines: the indentation line (for folding) and the die cut line (for cutting). The indentation line is engineered with precise depth and width to ensure clean, consistent folds every time, while the cut line delivers sharp, burr-free edges for smooth, error-free assembly.
In mass production, Crown Win uses high-precision die-cutting equipment to ensure 100% consistency across every unit, eliminating assembly errors for batch use by our global clients.
5. Reinforced Edge & Corner Design
The bottom and top corners of the box are reinforced with folded edges, drastically improving the box’s vertical compression strength. For e-commerce and logistics applications, this design allows the paper box to withstand stacking loads of up to 300kg (depending on material specifications), fully protecting footwear products during long-distance transportation and warehousing.
Core Commercial Advantages of Flip Style Shoe Box Structure
This classic design has become a universal standard in the footwear packaging industry, thanks to its perfect balance of structural performance, cost efficiency, and brand promotion potential. Below are its core commercial advantages for shoe brands and e-commerce sellers.
Superior Structural Stability
The integrated structure and reinforced corners deliver far better impact and compression resistance than two-piece shoe boxes. This minimizes product damage during transportation and handling, directly reducing return rates and associated brand costs.
High-Efficiency Production & Assembly
The integrated die-cutting structure requires less production time than rigid assembled boxes, with fewer assembly steps to lower manufacturing costs. The glue-free self-locking design eliminates assembly labor and adhesive expenses, with assembly speed 90% faster than traditional glued shoe boxes.
Unlimited Customization Potential
The flat, seamless front, back, and cover panels provide a complete, uninterrupted canvas for brand storytelling. We offer unlimited customized shoe box packaging options, including offset printing, flexographic printing, hot stamping, embossing, and eco-friendly surface finishes.
Optimized Logistics & Storage Efficiency
When flat-packed, the box volume is less than 10% of its assembled volume, drastically cutting transportation and storage costs. Its standardized stacking design also optimizes warehouse space utilization, making it the ideal shoe packaging solution for global brands and cross-border sellers managing large-scale inventory.
Sustainable & Eco-Friendly Packaging Solution
Our flip up shoe boxes are made from 100% recycled, FSC-certified paper, printed with water-based inks and zero plastic coatings. Unlike packaging with plastic hinges or laminated components, this hinged shoe box is fully curbside recyclable, helping brands meet their ESG (Environmental, Social, and Governance) and sustainable development goals with reliable sustainable shoe box packaging.
FAQ About Custom Flip Shoe Box Packaging
We have compiled the most common questions from shoe brands, sellers, and packaging designers about the structure, design, and manufacturing of flip style shoe boxes, based on our 18 years of experience as a global paper shoe box manufacturer.
Q1: What is the best material for manufacturing flip shoe boxes?
A: The optimal material depends on your specific application. For retail displays and high-end footwear, 300-400gsm solid kraft cardboard or coated double grey board delivers a smooth, premium finish with exceptional texture.
For direct e-commerce shipping, E-flute or B-flute corrugated board is the ideal e-commerce corrugated shoe box solution, thanks to its superior impact and compression resistance. For brands prioritizing sustainability, we recommend 100% recycled FSC-certified cardboard, which delivers the same structural strength while significantly reducing environmental impact. At Crown Win, we provide full material customization services to ensure your packaging meets both your performance and sustainability requirements.
Q2: Can flip shoe boxes be customized for non-standard shoe sizes?
A: Absolutely. The flip style shoe box structure has extreme flexibility and scalability. We can customize the structural design for any shoe size — from baby shoes and plus-size men’s boots to specialty high heels — for a perfect fit every time.
Our in-house structural design team creates a customized shoe box knife line design and knife mold diagram for every non-standard size, guaranteeing stable box structure, smooth assembly, and a perfect fit with your products.
Q3: What customization options are available for custom flip shoe boxes?
A: Crown Win provides end-to-end comprehensive customization services for flip shoe boxes, with full options covering:
Material selection (solid cardboard, corrugated board, recycled cardboard, FSC-certified materials, etc.)
Full size customization (precision-adjusted to fit any shoe dimensions)
Printing technology (CMYK offset printing, flexographic printing, digital printing, Pantone spot color matching)
Surface finishing techniques (hot stamping/foiling, embossing/debossing, spot UV coating, water-based varnish, soft-touch lamination)
Internal packaging accessories (lining paper, molded pulp inserts, EVA foam lining, custom dividers, etc.)
Q4: How do you ensure structural consistency during mass production?
A: At Crown Win, we guarantee 100% structural consistency across all production runs through our ISO 9001 certified quality management system. For every order, we implement the following strict measures:
We produce precision steel molds and create pre-production blank and color samples for customer confirmation and approval before mass production begins;
During production, we control indentation depth and die-cutting accuracy within a ±0.1mm tolerance range;
We conduct dimensional tolerance testing, compression strength testing, and assembly testing for every production batch;
We ensure the maximum dimensional tolerance of all finished units does not exceed ±0.5mm, completely eliminating assembly errors during batch use.
