A Comprehensive Analysis of 3D UV Printing Technology for Packaging
1. Basic principles

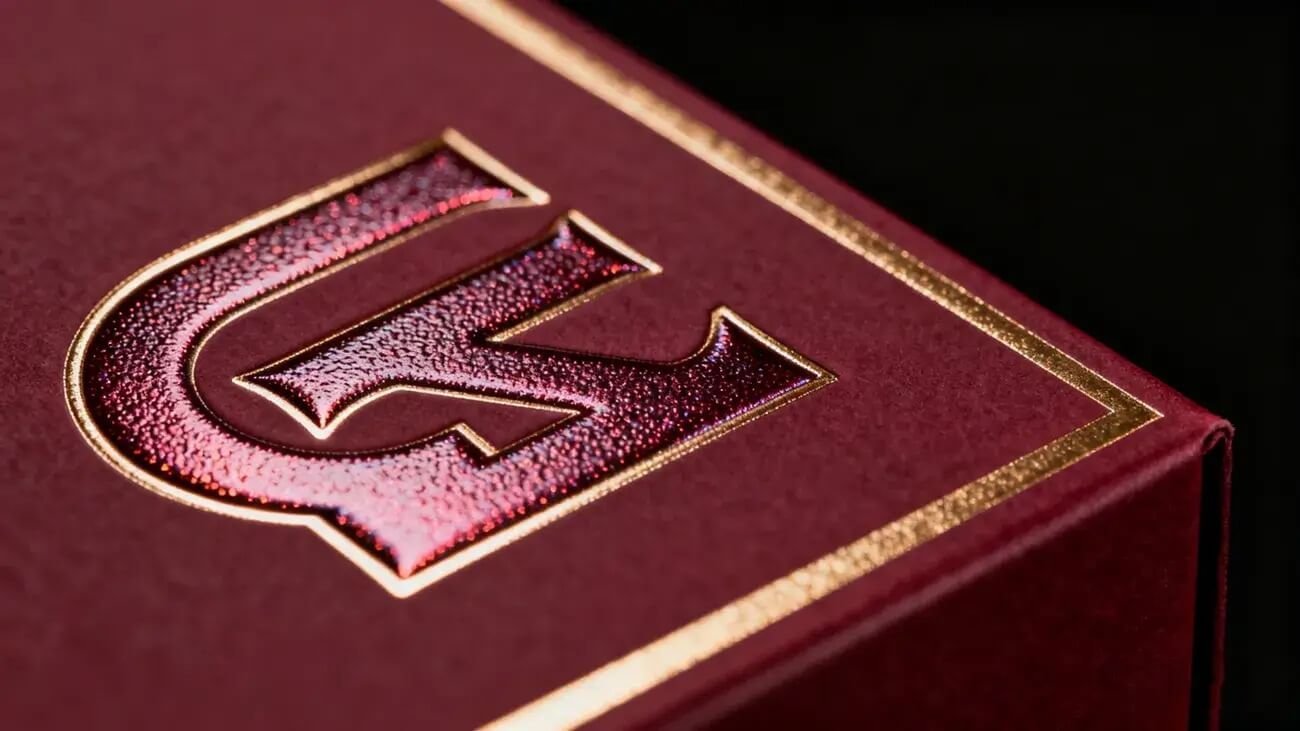

Stereoscopic UV printing is a combination of ultraviolet light curing technology and digital inkjet technology, which creates a dual visual and tactile effect by accurately stacking multiple layers of UV ink to form physical protrusions.
UV curing mechanism: After the UV ink containing a photoinitiator is sprayed, it is immediately irradiated by a UV light source (wavelength 200-400nm), which triggers resin polymerization reaction and solidifies into a film within 0.1-1 seconds
Stereoscopic molding: By stacking multiple layers of white ink (1-5mm thick) to form a relief substrate, and then coating it with colored ink, the "three-dimensional design of flat patterns" is achieved
2. Core advantages
Specific manifestations of advantages
1. Visual impact
Specific manifestations: 0.1-5mm physical protrusion, three-dimensional touch, clear hierarchy, enhancing product texture.
2. Material adaptability
Specific performance: It can directly print 300+materials such as paper, plastic, metal, glass, leather, etc. without pre-treatment.
3. Process integration degree
Specific performance: Complete CMYK+white ink+glossy full-color stereoscopic effect in one go, saving traditional multi process time and cost.
4. Production efficiency
Specific manifestations: The production cycle for a single item is less than 1 minute, which is 3-5 times faster than traditional screen printing/hot stamping, and supports mass customization.
5. Environmental characteristics
Specific manifestations: solvent-free volatilization, low VOC emissions, in line with modern green production requirements.
2、 Core process types and implementation methods
1. Stacked ink stereoscopic UV printing (mainstream process)
technological process:
Design preparation: Separate the 3D effect area into independent layers.
Bottom layer treatment: substrate surface cleaning/coating treatment to enhance adhesion.
White ink stacking: Multiple layers of UV white ink are sprayed through high-precision nozzles (12-35 μ m aperture), and each layer is cured and then stacked to form a 0.1-5mm three-dimensional substrate.
Color Coverage: Print CMYK color patterns on raised surfaces for precise overlay printing.
Light oil protection: The surface is coated with transparent UV light oil to enhance gloss and wear resistance.
Key technologies:
Gray level control: Variable ink droplet technology for the nozzle (6-12 picoliters precision), achieving precise adjustment of relief height.
Z-axis positioning: Real time monitoring with dual laser scanning system, with a positioning accuracy of ± 0.01mm, ensuring precise alignment of multi-layer stacking.
2. Other stereoscopic UV technologies
Gravure 3D UV: First create 3D gravure, then print on the back of the substrate to present a three-dimensional effect from the front, suitable for ultra-thin materials.
Grating stereoscopic UV: Combining stereoscopic grating materials to present different images at different angles, creating dynamic visual effects.
UV-DTF crystal label: Made by stacking multiple layers (0.1-0.5mm) of adhesive layer, white ink layer, color ink layer, and glossy oil layer, it is a transferable three-dimensional label suitable for curved packaging.
3、 Future Development Trends
Technology Integration: UV Stereoscopic Printing+AR/VR Technology, Scan Code to Watch 3D Animation of Products, Enhance User Interaction Experience.
Material Innovation:
Develop biodegradable UV ink to meet the needs of environmentally friendly packaging.
Highly elastic UV material, suitable for flexible packaging and wearable devices.
Process integration:
The entire process of 3D UV, die-cutting, and indentation is automated, completing everything from design to finished product in one stop.
Combining AI technology to achieve intelligent color management and automatic defect detection.
Stereoscopic UV printing technology is leading the packaging industry to leap from two-dimensional flat to three-dimensional experience, empowering product value and creating unique market competitive advantages.
